A Mobile Web App for Measuring Leaf Angles in the Field

Leaf Angle App in the Field
Testing the Leaf Angle App in the field alongside traditional measurement tools.

Leaf angle — the inclination of a leaf relative to a vertical or horizontal plane — is a key plant architectural trait that influences light interception, canopy photosynthesis efficiency, and crop yield modeling. Manually measuring it in the field is tedious and error-prone.

Project Development Roadmap
Prototype
UX Feedback
v1 Release
2026 Refresh
Apr 23 May 23 Nov 23 Mar 26

This post walks through how I designed and built a browser-based web app that uses a smartphone’s built-in IMU sensors to capture leaf angle data, export it as a CSV, and evolved through real field user feedback.

Problem Statement

GEMINI Project needed a way to quickly record leaf inclination angles across many crop plots — while keeping track of the crop name, plot number, and timestamp for each measurement. Existing solutions were either:

  • Expensive dedicated hardware (inclinometers)
  • Paper datasheets (error-prone, slow to digitize)
  • Generic sensor apps that didn’t export structured CSV data

The goal was a free, zero-installation tool that any field worker could open directly in their phone’s browser and start recording.

Initial Design Plans

Before writing any code, I sketched out the initial UI and data flow. The goal was to keep the interface as simple as possible: a big “Record” button and a clear readout of the current angle.

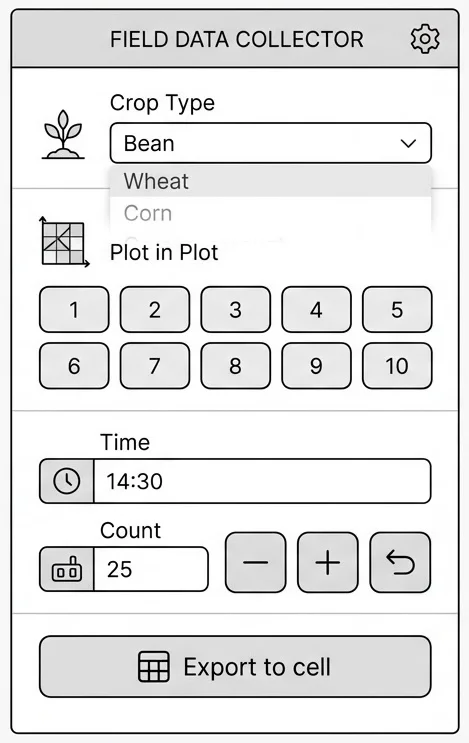

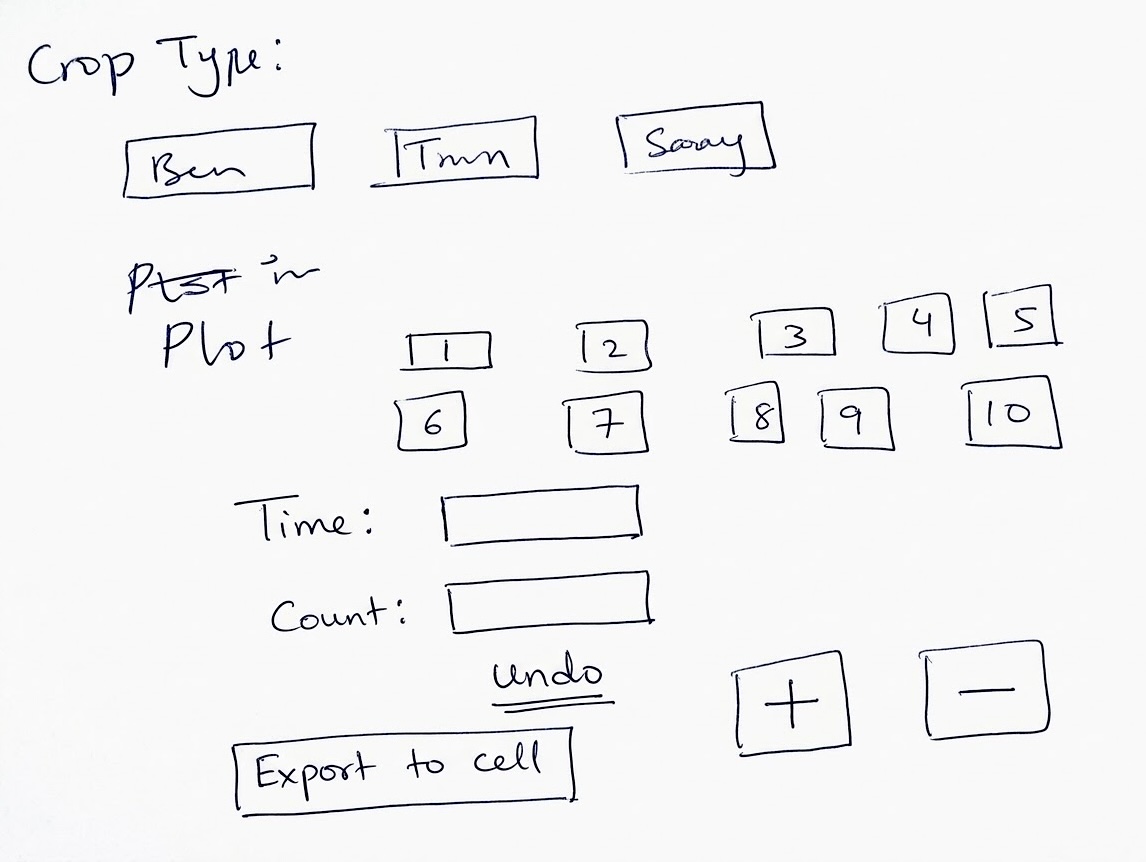

Initial Hand Sketch Initial Wireframe
Early sketches and wireframes for the Field Data Collector interface.

Idea

Smartphones already contain 3-axis accelerometers and gyroscopes. Web browsers expose these via the DeviceOrientationEvent API, which gives real-time pitch (β), roll (γ), and yaw (α) angles. A simple calculation converts these into a leaf angle value with respect to vertical.

The core idea: hold the phone flat against a leaf, press record — done.

Key Requirements:
  • Works in any mobile browser (no app install)
  • Customizable crop name and plot number
  • Log timestamped measurements in a table
  • Export data as a downloadable CSV file
  • Usable one-handed in the field

First Draft

The first version was built as a vanilla JavaScript / HTML Progressive Web App (PWA). It subscribed to deviceorientation events and computed the leaf angle from the gravity vector components. A simple table below the sensor readout accumulated each recorded measurement.

Key technical steps in the first draft:

  1. Register a deviceorientationabsolute event listener
  2. Compute the leaf angle: leafAngle = Math.acos(Math.cos(beta * Math.PI/180) * Math.cos(gamma * Math.PI/180)) * (180/Math.PI)
  3. Render live X (β), Y (γ), Z (α), and computed leaf angle values
  4. On Record button press, push a row {time, crop, plot, count, x, y, z, leafAngle} to an in-memory array and render the table
  5. On Download, serialize the array to CSV using FileSaver.js

The control buttons (Start / Record / Undo / Download) were placed at the top of the screen in the initial layout.

Design Suggestion from Ismael

After sharing the first draft with the field team, Ismael Mayanja — a plant scientist who actively uses the app in field trials — provided detailed feedback via Slack (May 2023):

“Can we have the buttons (Start/Record/Undo) at the bottom of the screen instead of the top, it is easier to press them that way especially in the field.” “Can we also have both volume buttons to also record if I press them.” “Can we make both the crop ID and the plot number customizable so that a user is prompted with a keyboard.” “Digital clock showing at the top. A compass.”

Ismael also sent a hand-drawn wireframe sketch showing exactly how he envisioned the layout:

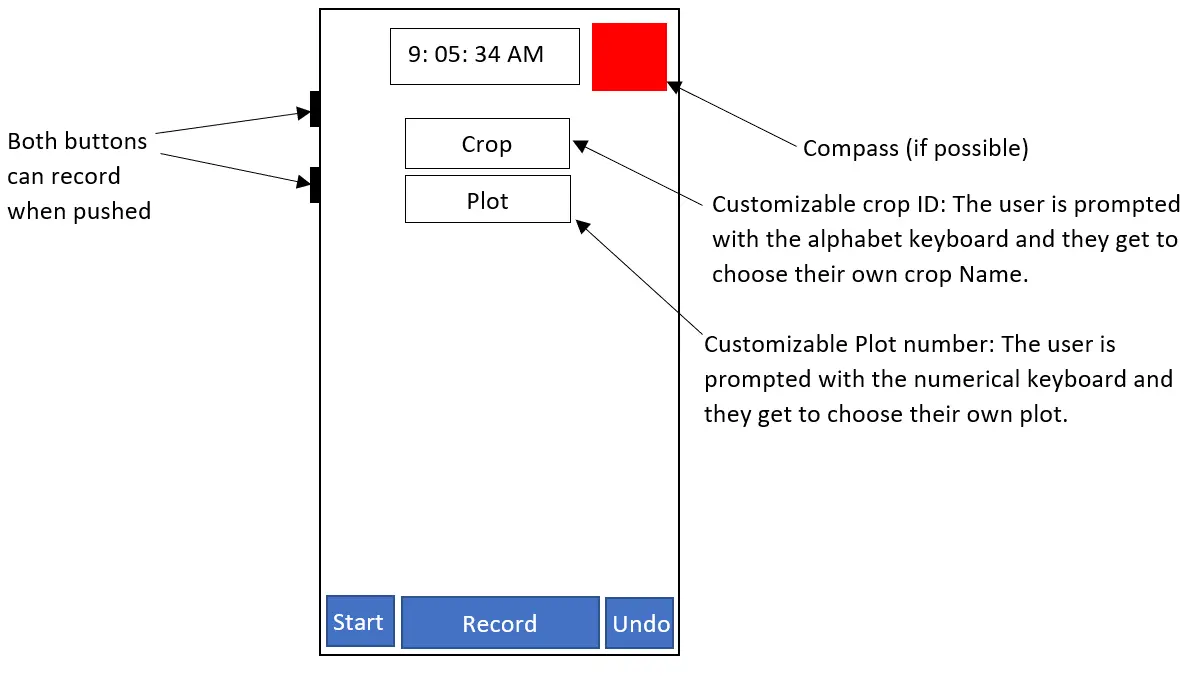

Ismael's hand-drawn wireframe: buttons at bottom, compass top-right, customizable crop and plot fields
Ismael's hand-drawn UI wireframe — buttons moved to the bottom, compass indicator added top-right, text-entry fields for crop and plot ID.

A follow-up message added three more issues to address:

  1. Pressing Download CSV wasn’t working.
  2. The latest recorded data should appear at the top of the table, not the bottom.
  3. Replace “Num. of data points” with “Count” so users can quickly see how many measurements they’ve taken.

Final Design

Incorporating Ismael’s feedback and subsequent field testing, the app evolved through two major iterations: the original 2023 release (v1) and the recent 2026 UI refresh (v2).

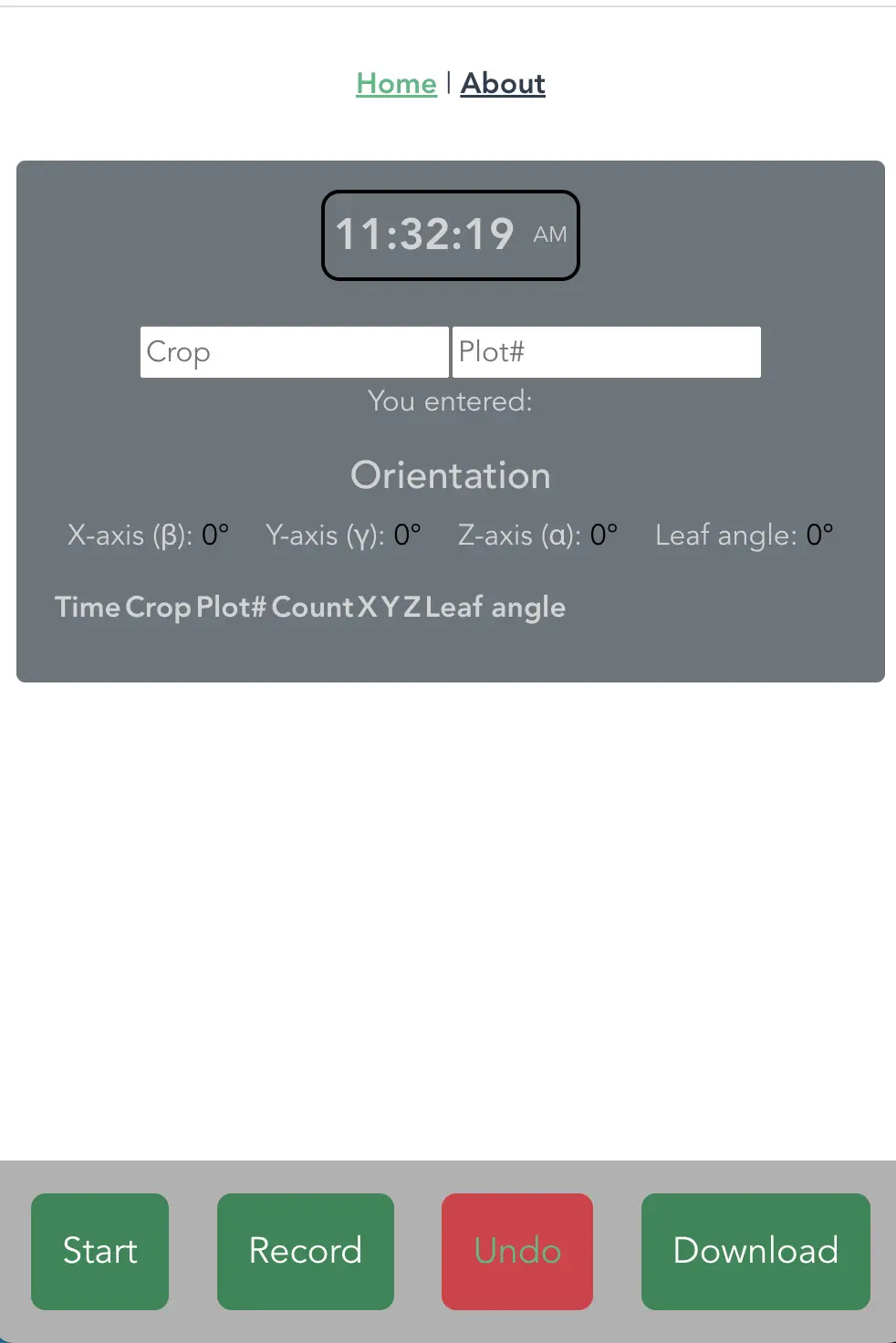

Leaf Angle App v1 (2023)
v1 (2023): Initial optimized design with bottom controls.

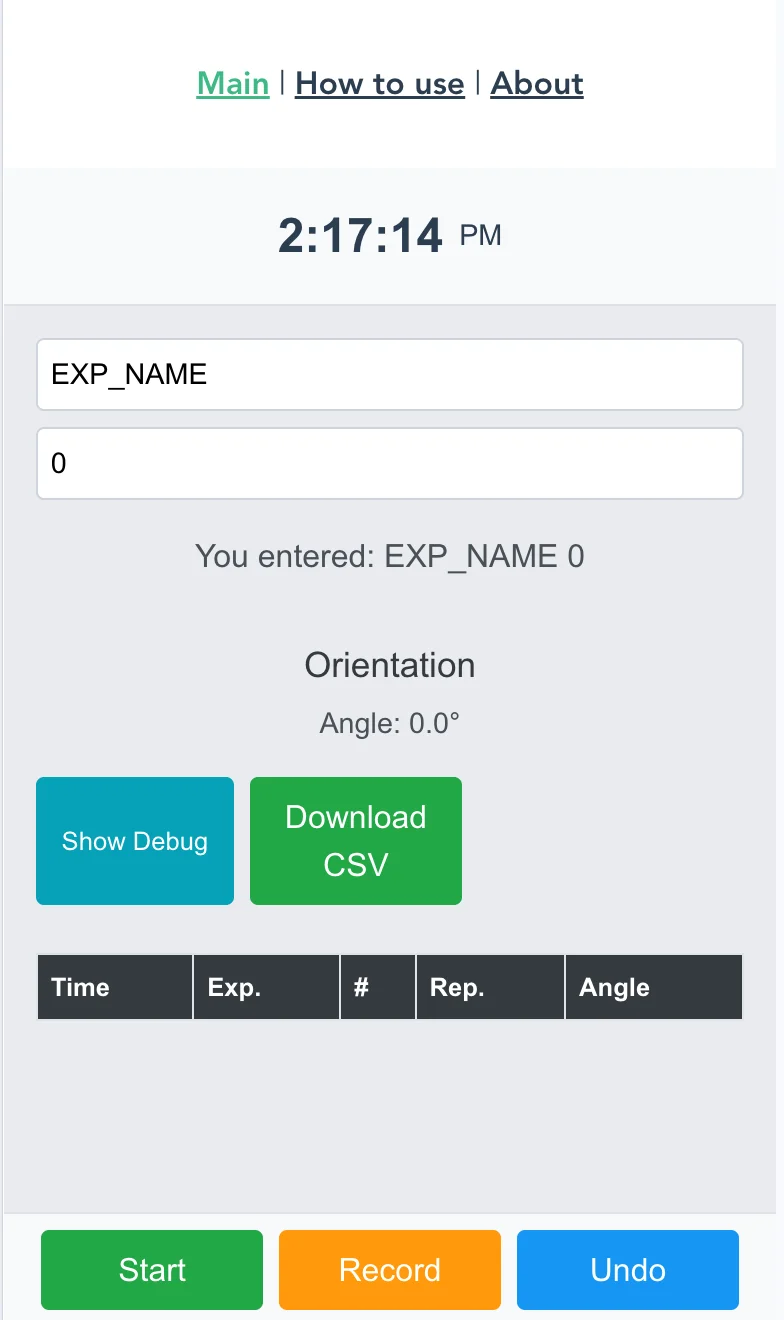

Leaf Angle App v2 (2026)
v2 (2026): Refined UI with improved typography and high-contrast elements.

Changes implemented across iterations:

Feature Before After
Button placement Top Bottom (thumb-friendly)
Volume buttons as record ✗ ✓ (both volume keys)
Crop / Plot ID Fixed dropdown Free-text input (keyboard prompt)
Digital clock ✗ ✓ (top center)
Compass ✗ ✓ (top right, if API available)
CSV download Broken Fixed via FileSaver.js
Data order in table Oldest first Newest first
Data count label “Num. of data points” “Count”

Design Tools & Steps

Tools Used

Tool Purpose
HTML / CSS / JavaScript Core app structure, styling, and logic
DeviceOrientationEvent API Real-time IMU sensor data from the phone
DeviceMotionEvent API Hardware volume button detection
Vue.js Reactive UI framework for live data binding and component structure
@vueuse/core Vue composables for device orientation (useDeviceOrientation)
FileSaver.js Client-side CSV file download
GitHub Pages Free static hosting for the PWA
Vite Build toolchain for the Vue project

Development Steps

  1. Prototype — Vanilla JS proof-of-concept to validate that deviceorientationabsolute gives usable angles on Android and iOS.
  2. Vue migration — Rewrote the app using Vue.js to clean up the reactive state (sensor readings → computed leaf angle → table rows).
  3. Installed @vueuse/core for device orientation hooks:
    npm i @vueuse/core
  4. UI redesign — Moved controls to a fixed bottom bar, added digital clock at top, added free-text Crop and Plot inputs.
  5. CSV fix — Integrated FileSaver.js to correctly trigger the file download dialog:
    npm i file-saver
  6. Reverse table order — Changed the data array push to unshift() so the latest reading always appears first.
  7. Build & deploy — Built with Vite and pushed to GitHub Pages:
    npm run build
# deploy dist/ to the gh-pages branch

You can save the app to your phone’s home screen for quick field access — it behaves like a native app:

🌿 Open Leaf Angle App
On iPhone: Tap Share → Add to Home Screen
On Android: Tap the Browser Menu → Add to Home Screen
